Products
DEP Product range
This page is only available in English.
We have developed and can supply specific equipment.
Bending fatigue test
stand for Ropes

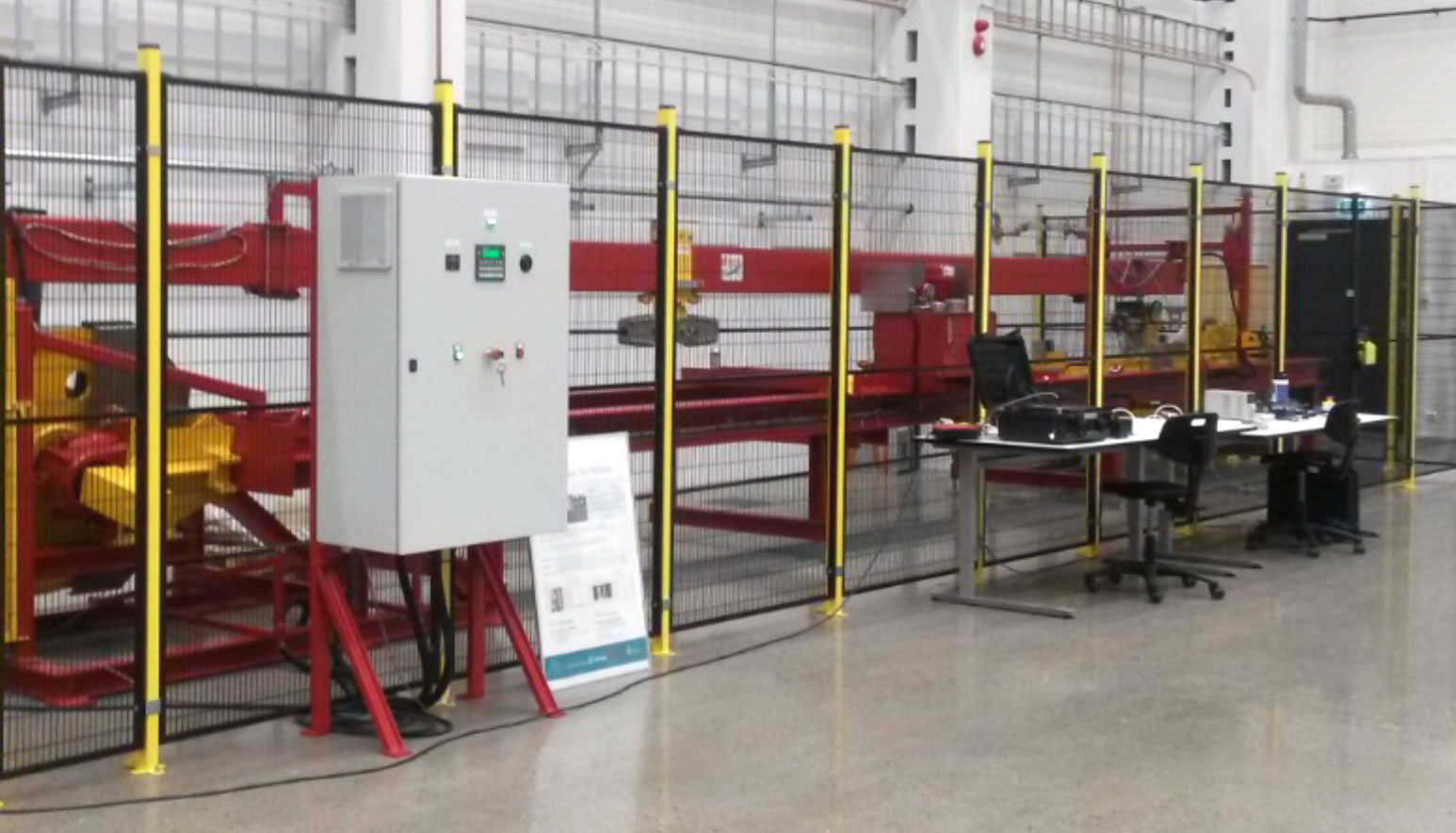

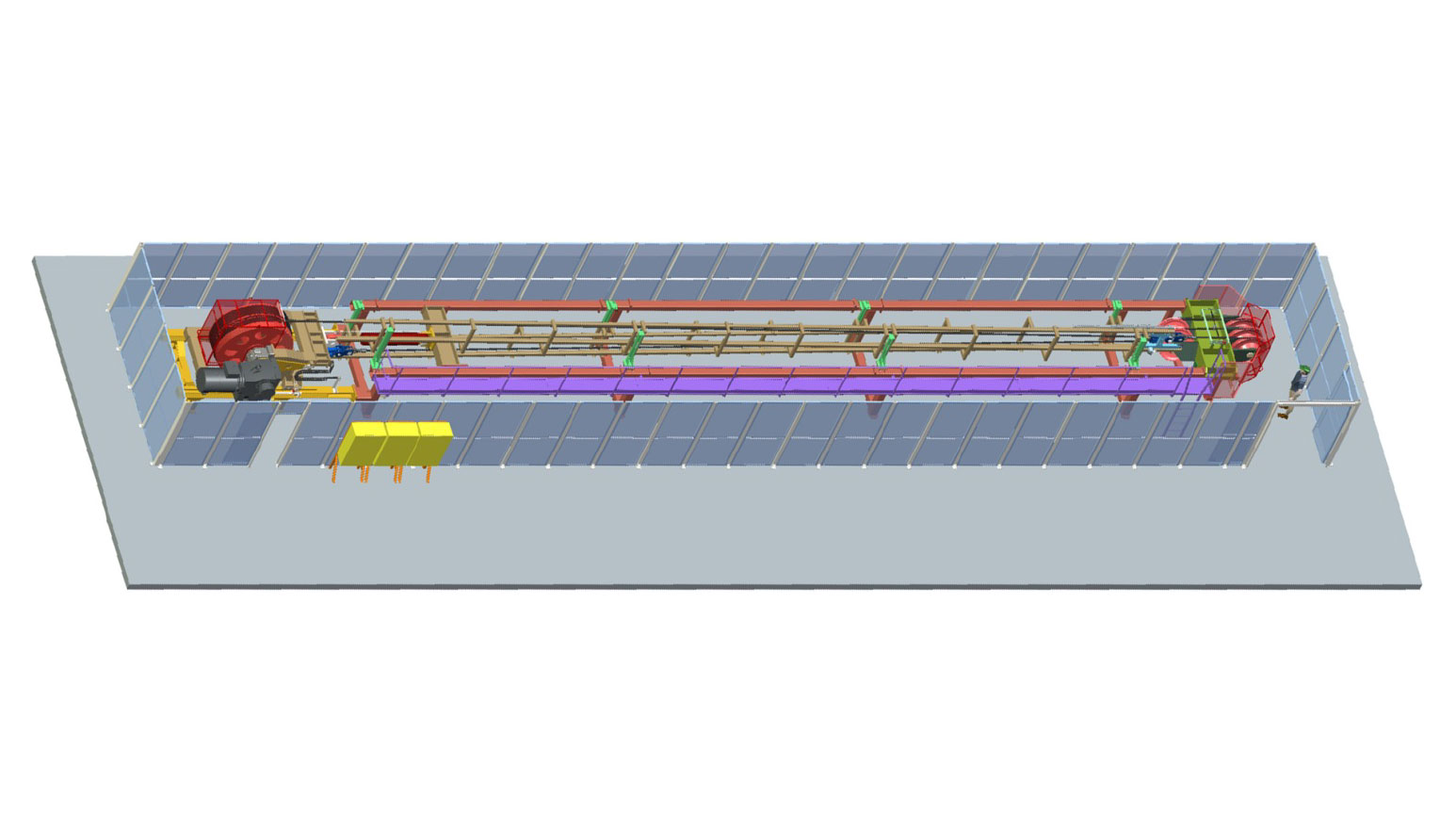

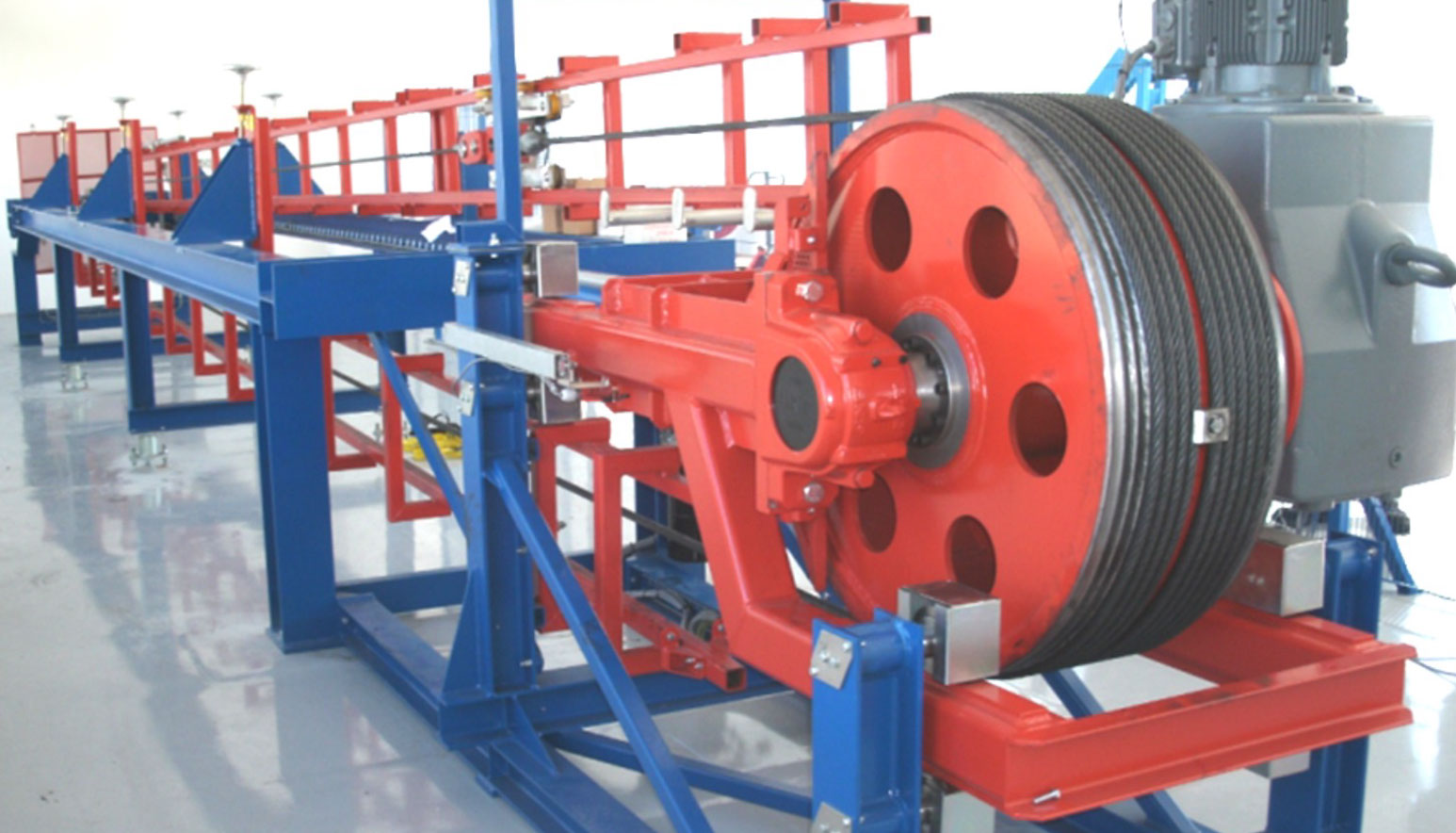

Presentation of the “RV” Bending Fatigue Test Stand
This test stand has been developed jointly with Roland Verreet. It gets the rope implementing several bending over sheaves cycles.
The machine can be used as well with wire rope as with high performance fiber ropes. With a 5 sheaves block, the machine provides 5 sets of samples (1*100%, 2*80%, 2*60%, 2*40%, 2*20%). The machine provides 2 samples for each non broken zone : one can be used for a breaking test and the other can be used for a visual inspection. Thus 1 test provides more data than 8 tests with a conventional CBoS machine.
The machine makes possible to turn the clock back to when the rope was new, and thus assess the evolution of its aging. Let’s assume that Grandpa died of a heart attack when he was 100 years old. Fortunately, we still have two samples of his heart when he was 20, 40, 60 and 80 years old…
The test stand makes possible the measure the “Margin to Failure” (Margin to failure: remaining service life once the rope has reached the discard criteria).
Contact us to get the full technical information.
1/3
2/3
3/3
Twist/Torque test
stand for ropes

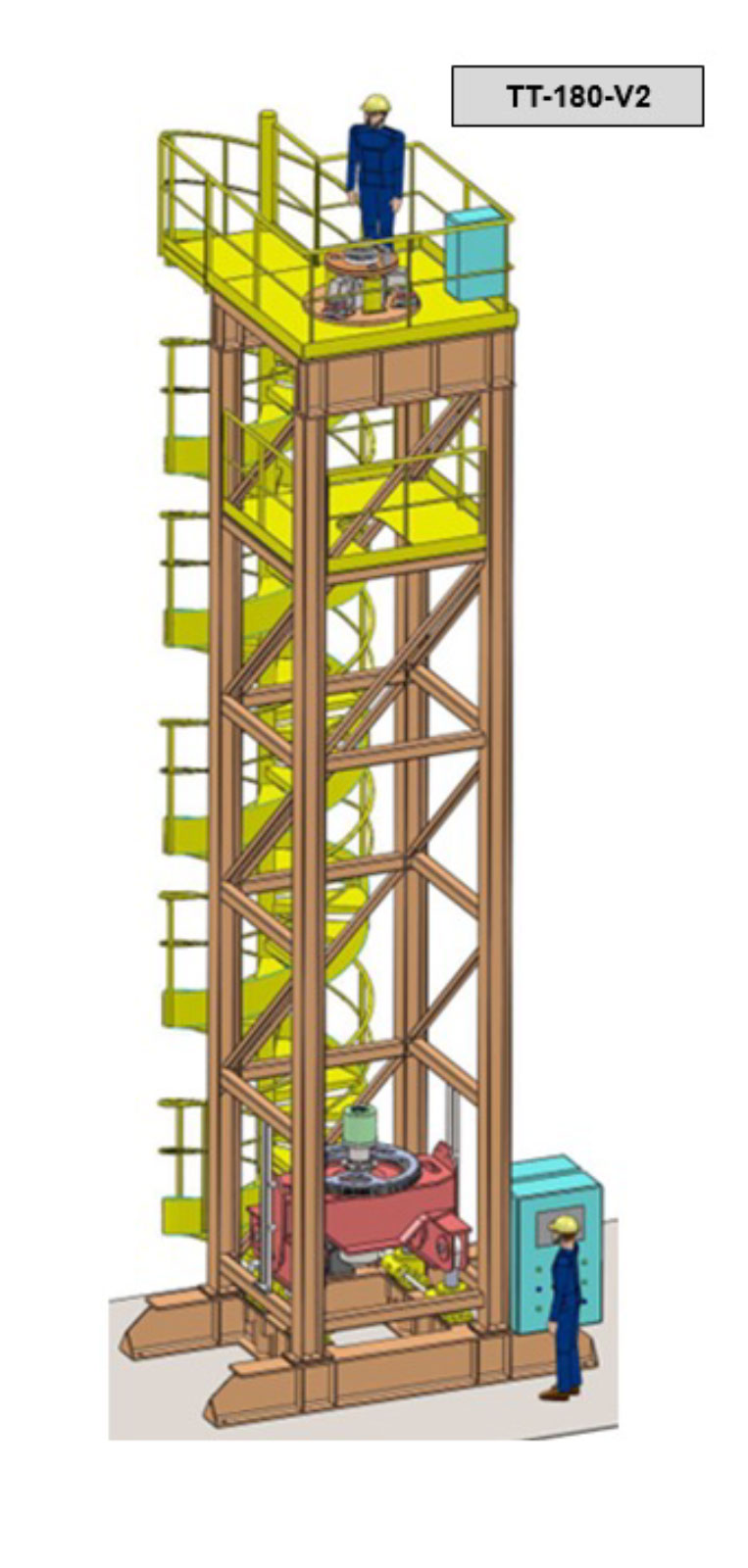

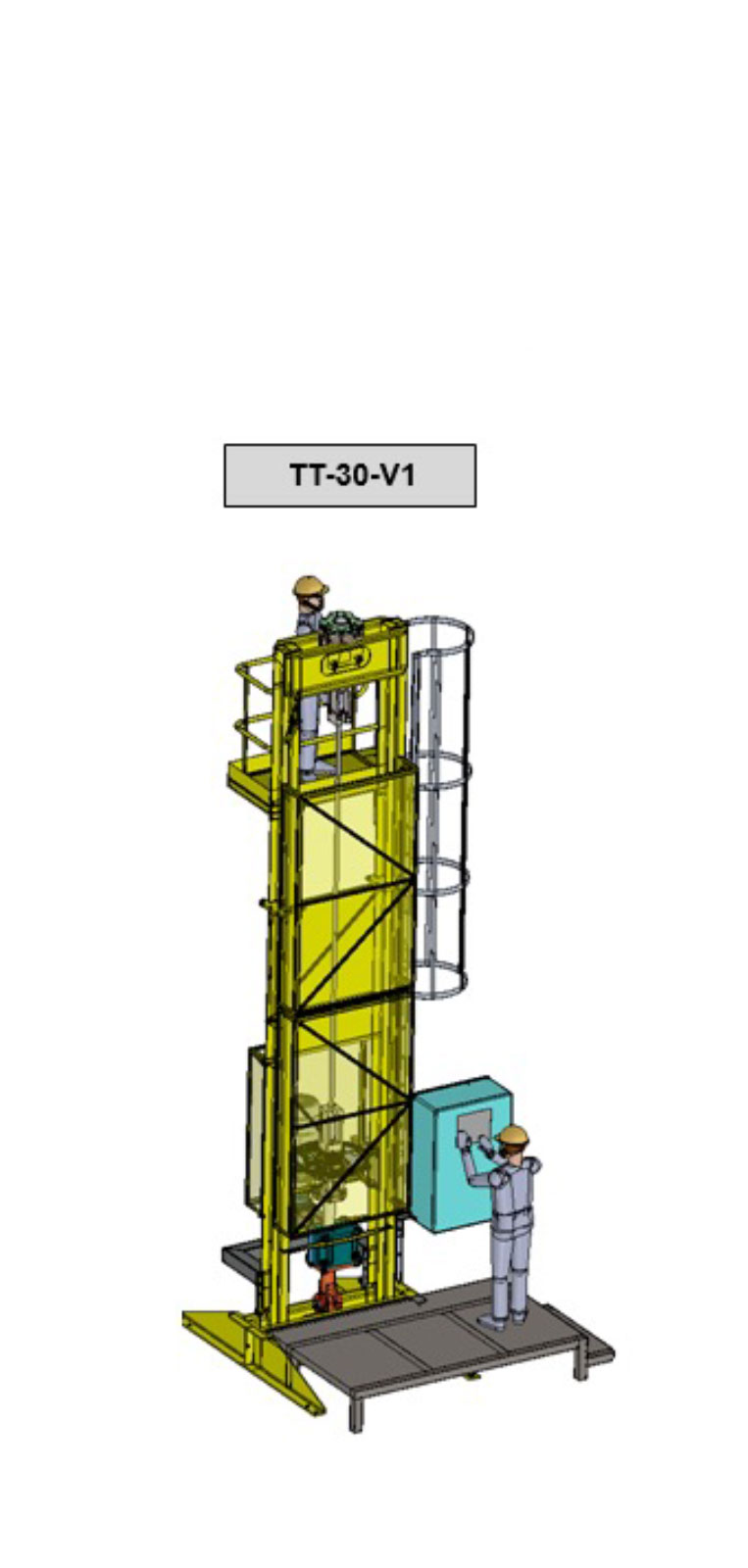

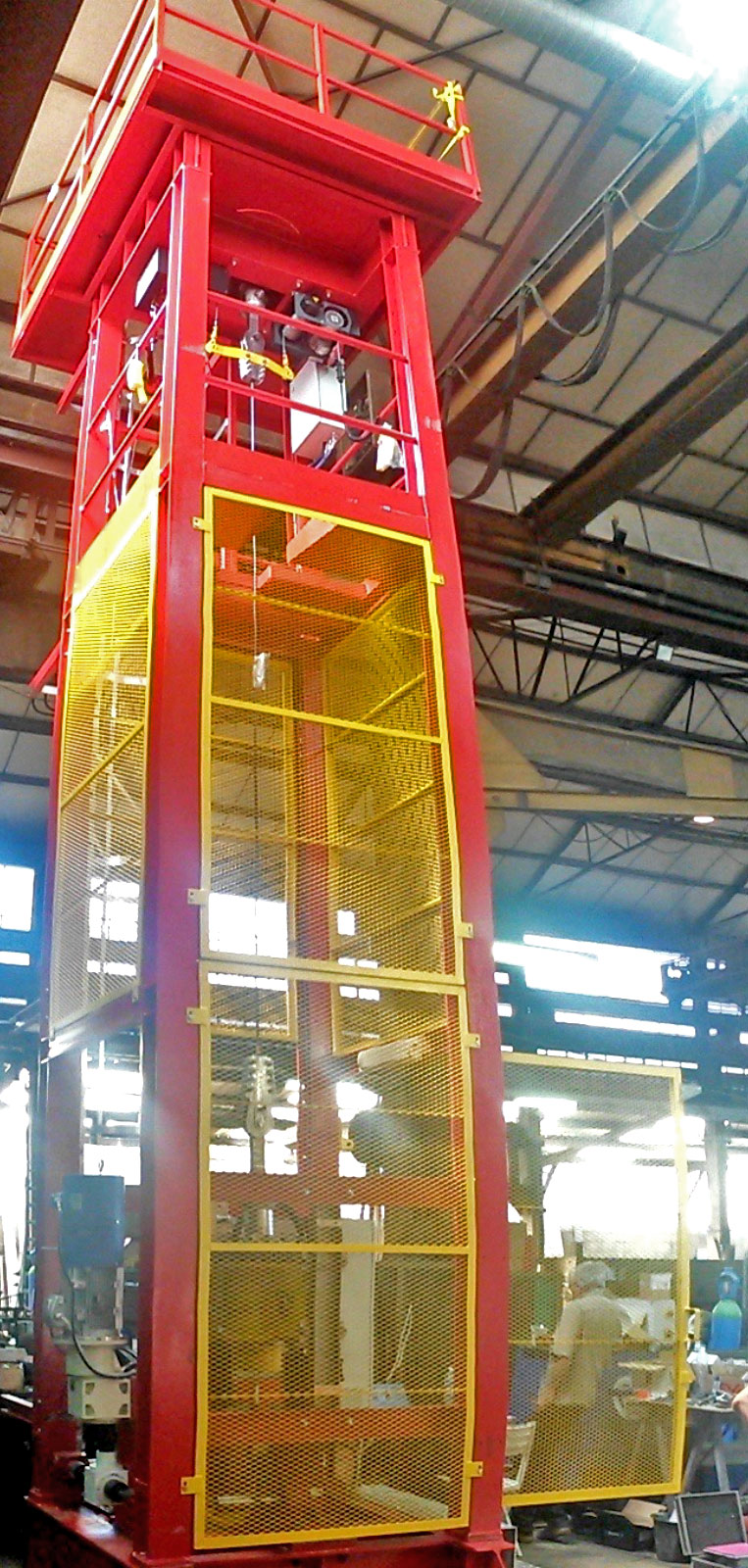

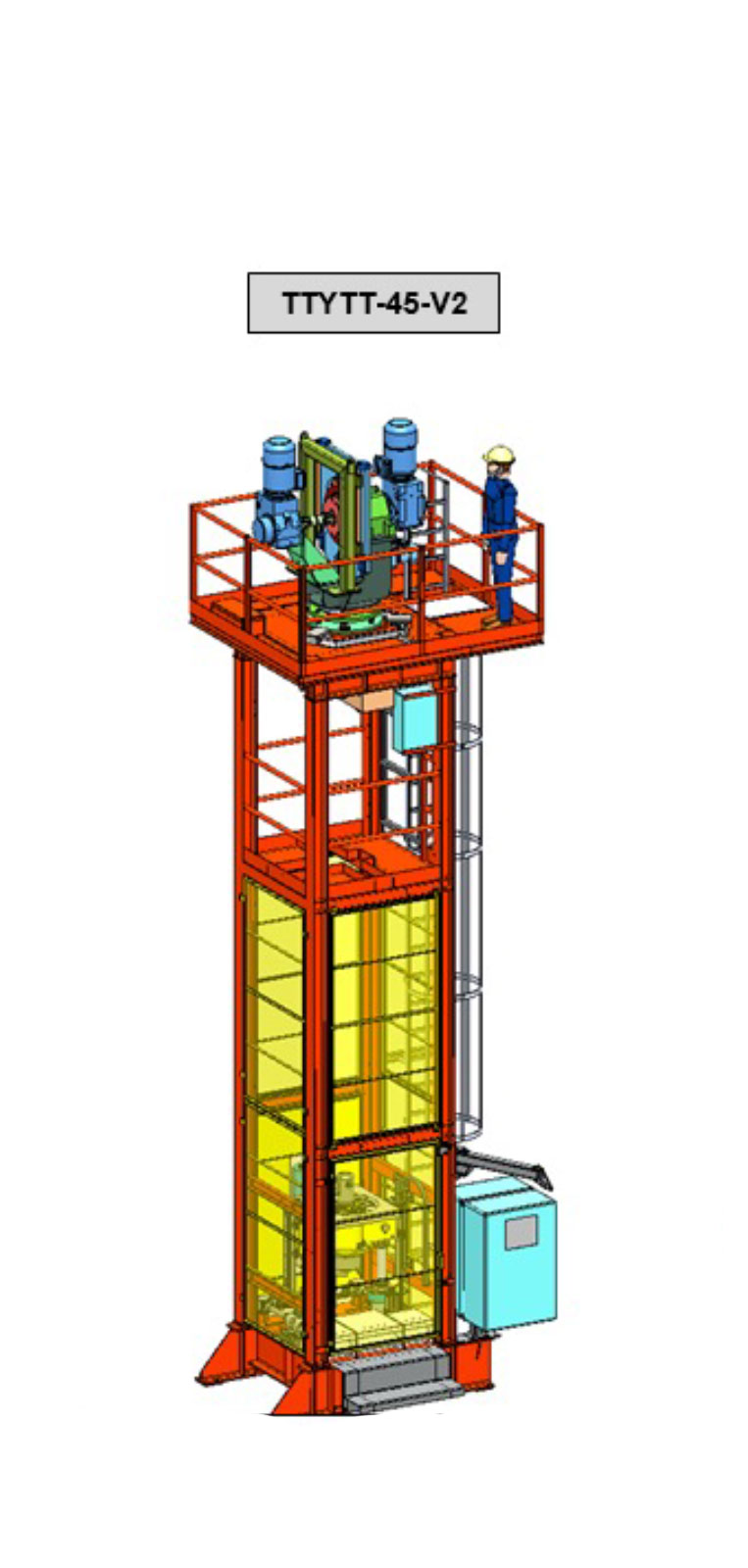

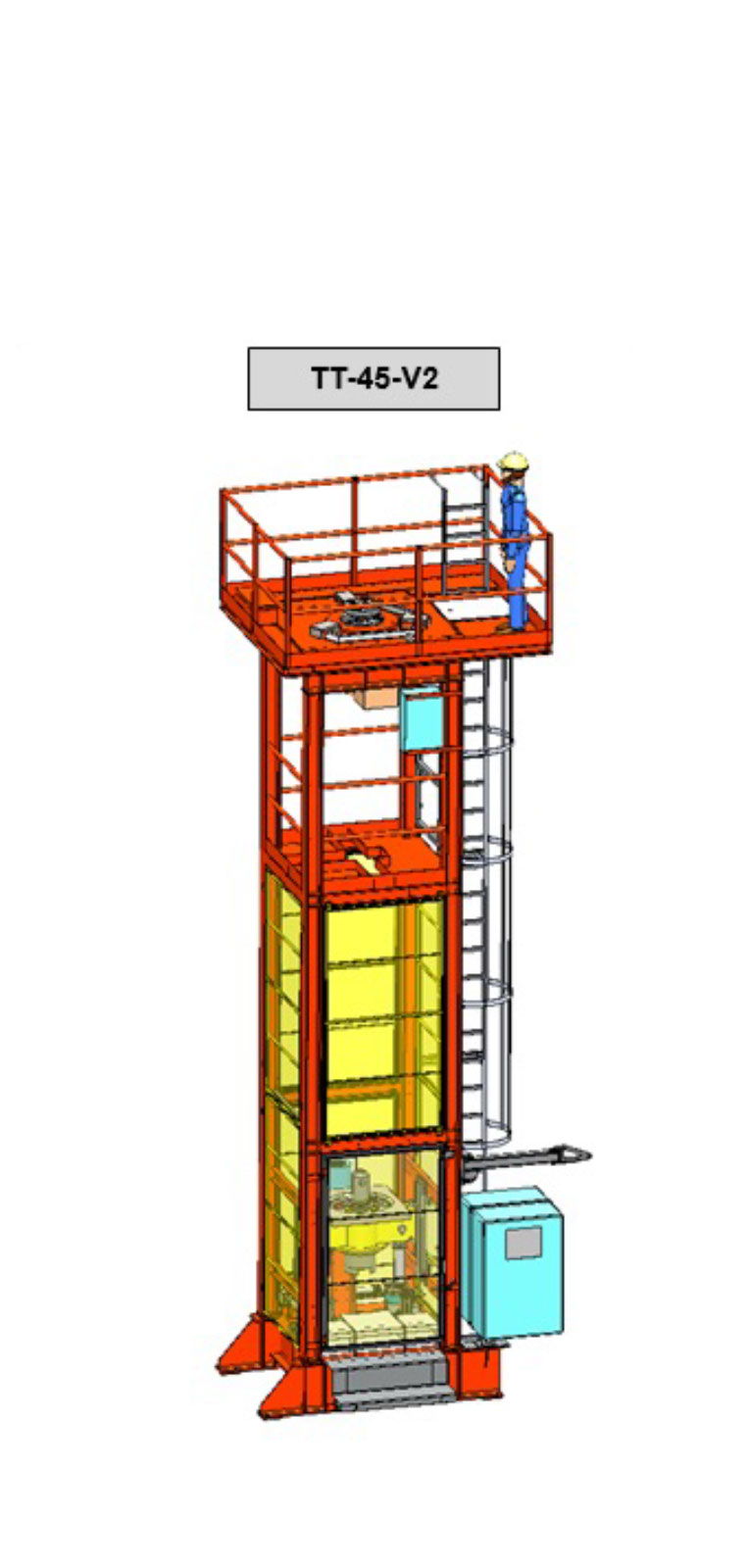

Presentation of the Twist/Torque Test Stand
This test stand makes possible to measure the Twist (when one end is free to rotate) and the Torque (when the two ends are blocked) of the rope versus the line pull.
This test stand also makes possible to measure the Young Modulus of the rope.
This machine can be used as well with wire ropes as with fiber ropes (ropes with a significant creep and/or with an elongation to break higher than 5% require a specific tensioning unit).
The sample is positioned vertically. Measurements performed with a sample positioned horizontally are not significant especially for the low tensions (because of the rope’s sag). An optional unit can be installed on the top of the test stand, and which makes the same machine able to perform a combination of Tension-Tension plus Torsion fatigue tests.
The machine is fitted with specific connectors. The same connectors are used for the wire ropes and for the fiber ropes. The wire ropes need no preparation (cut fused and tapered), the fiber ropes need a very simple preparation.
Contact us to get the full technical information.
1/5
2/5
3/5
4/5
5/5

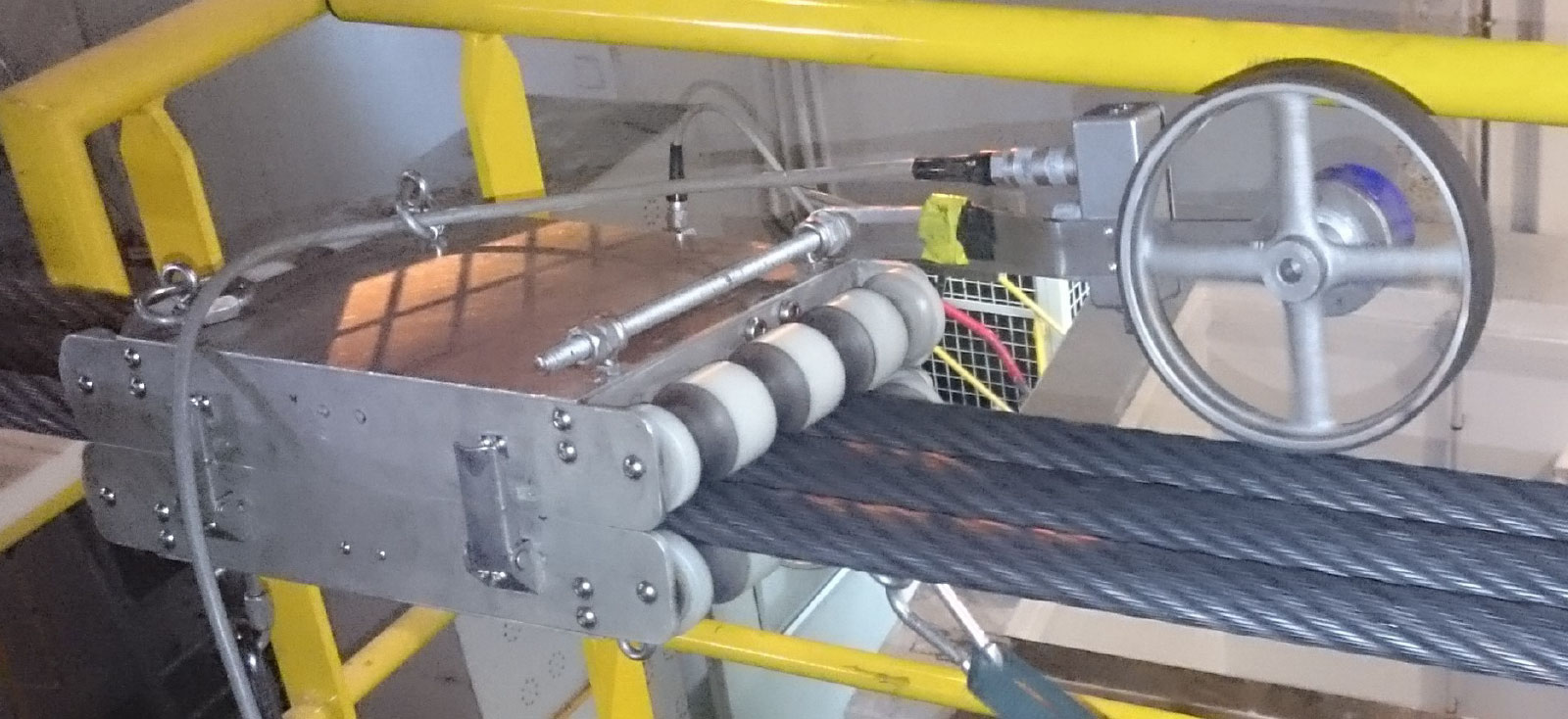

Measuring head for wire rope magnetic NDT
Presentation of the Measuring head for wire rope magnetic NDT
Specific measuring head developed jointly with IFT Stuttgart which makes possible the test independently each rope of a flat bundle.
This equipment is essential when the distance in between two ropes is not sufficient for the installation of standard measuring head.
Thanks to this equipment ropes of the Eiffel Tower elevators, of the Disney’s Tower of Terror amusement ride, Cobra's curse elevator (Busch Garden - Tampa) are now able to be inspected.
Contact us to get the full technical information.

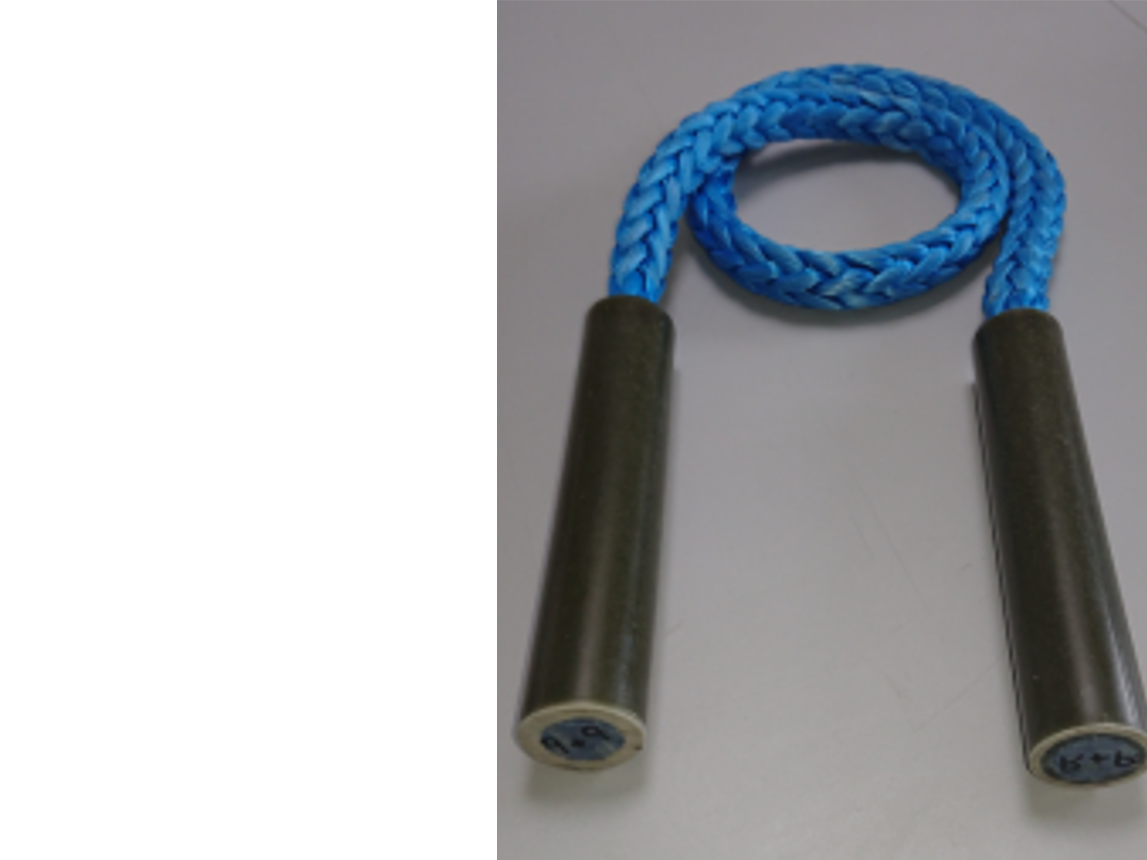

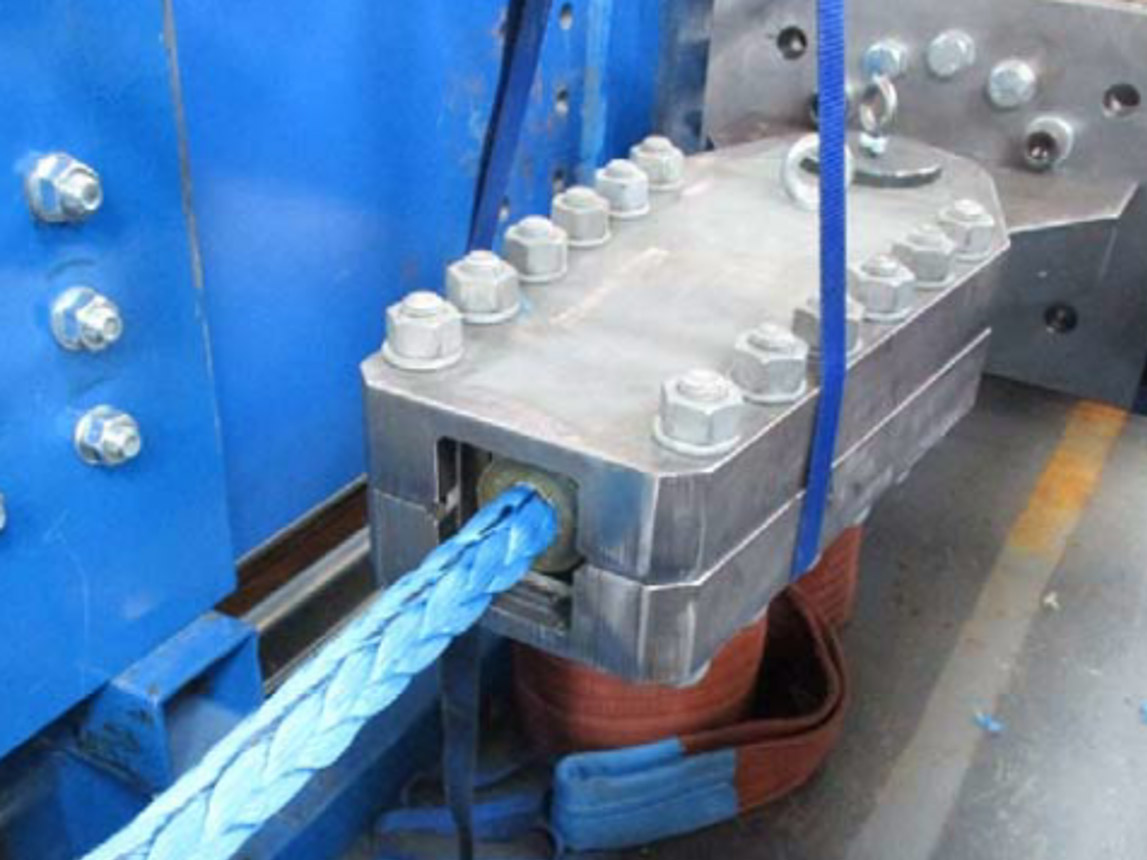

Hybrid Socket®
Innovative End Termination System for High-Performance Fiber Ropes
New end termination system able to transfer 100% of the rope’s MBL, whatever is the type of fiber (HMPE, Aramid, LCP).
Such termination is significantly shorter than the classical spliced eye.
Invented by Jean-Marc TEISSIER and patented by Millfield Terminations (joint venture between Millfield Enterprises and DEP Engineering).
Contact us to get the full technical information
1/2
2/2

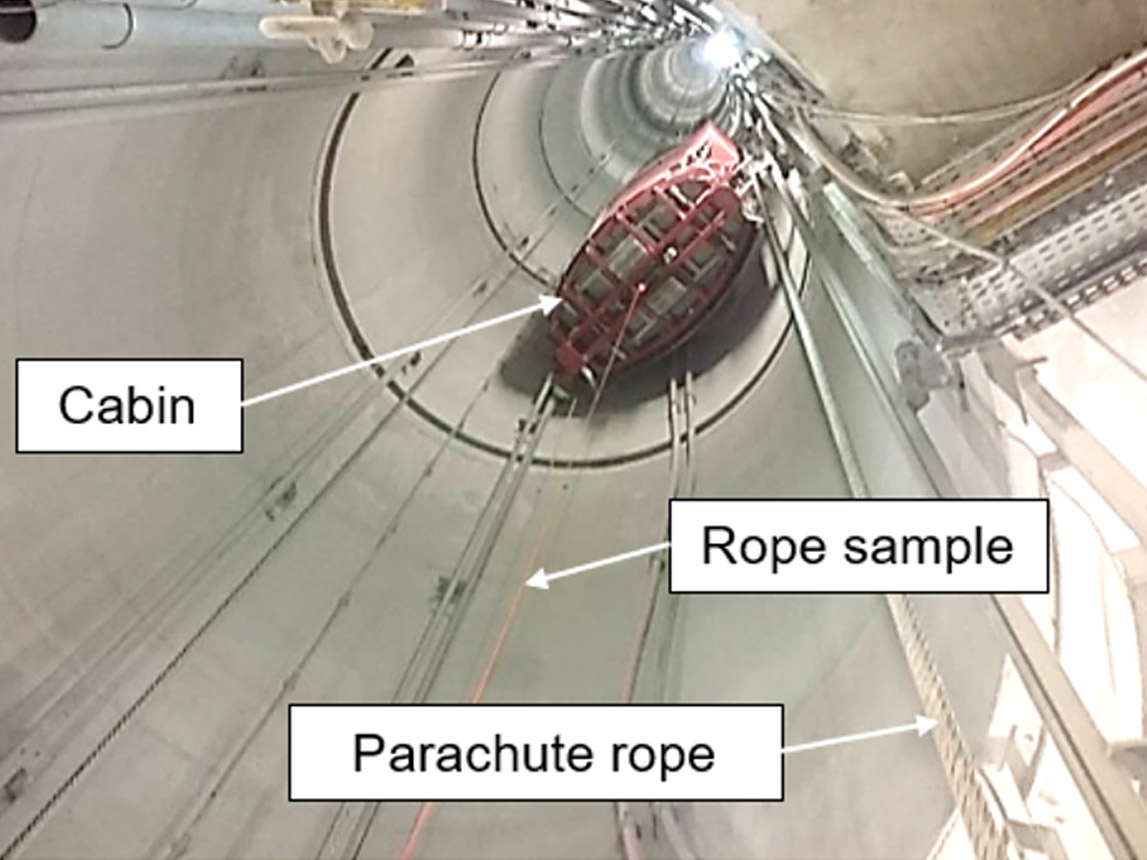

TEST STAND FOR THE CHARATERIZATION OF ROPES ELEASTIC BEHAVIOR
This specific equipment’s have been developed in order to transform the PX shaft of the ANDRA underground laboratory into a 500 m length test stand for the characterization of fiber and wire ropes elastic behavior, which is unique in the world.

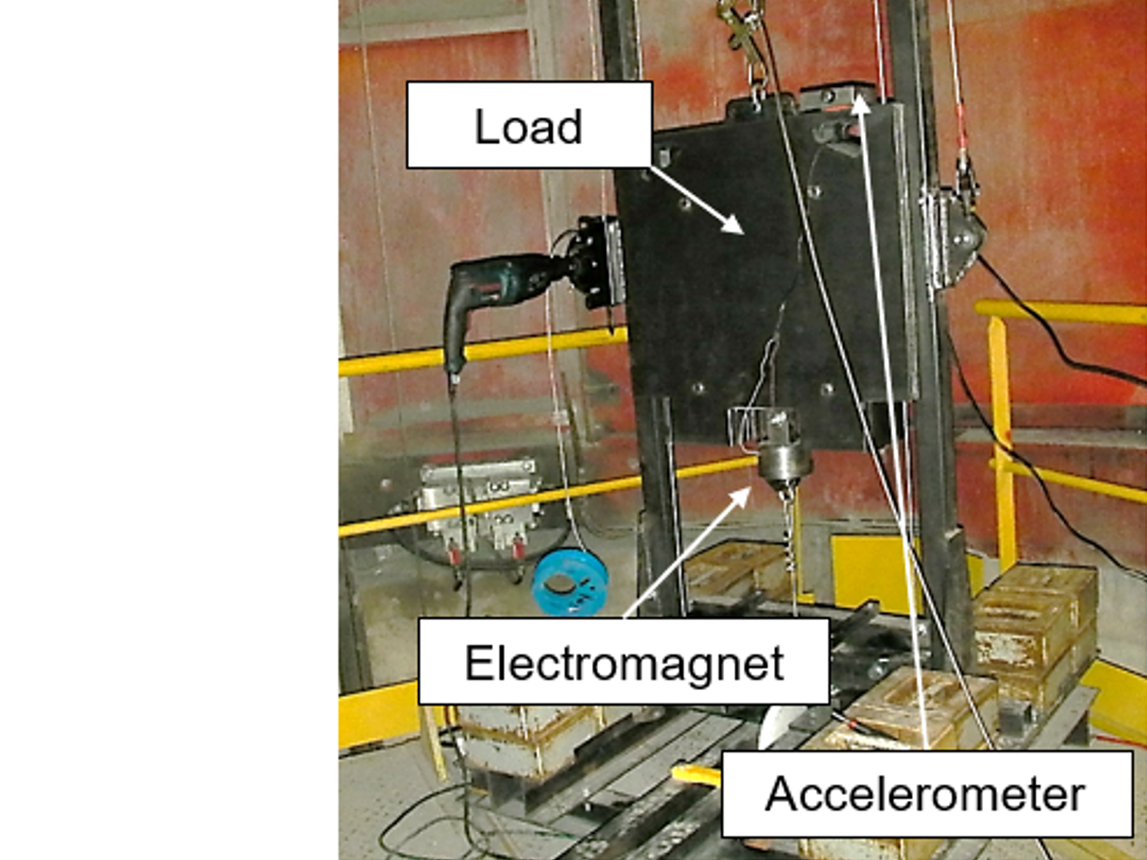

The stiffness (k) can be measured either with the free oscillations method or with the driven oscillations method.

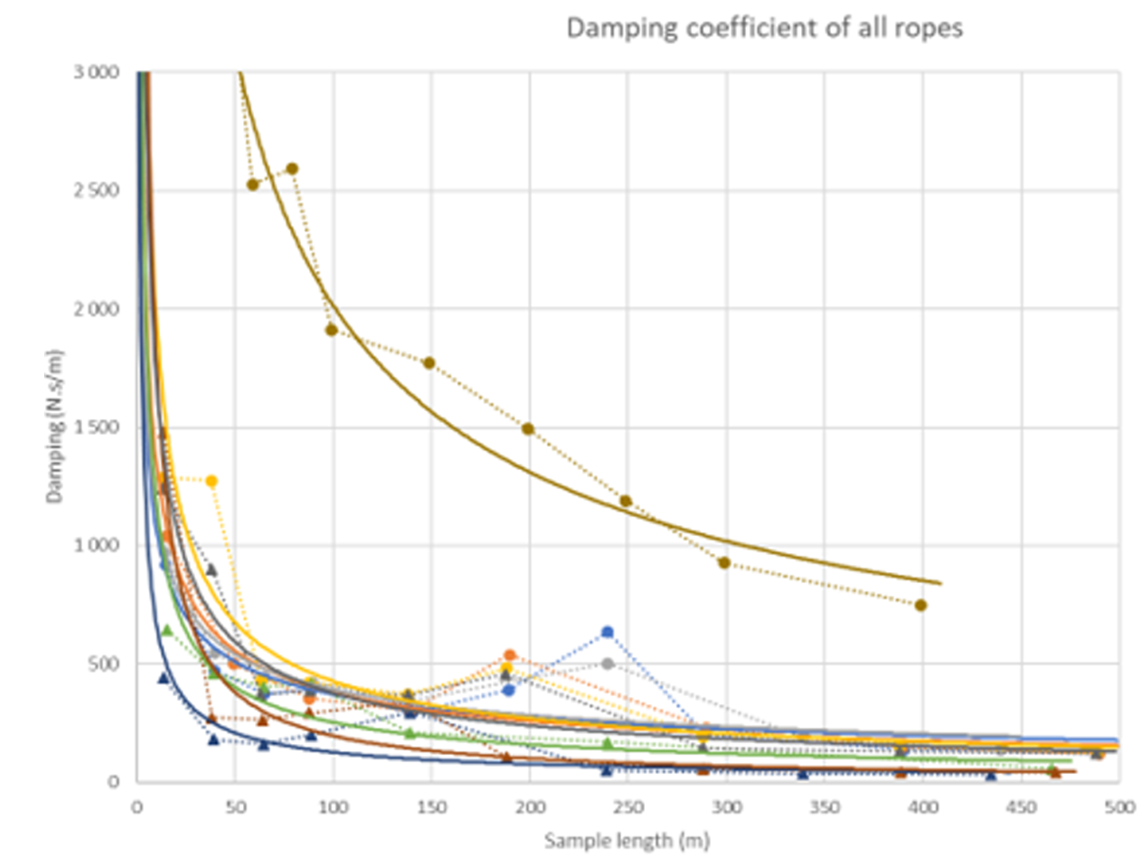

Thanks to the length of the test stand, the damping factor (c) can be accurately measured.
We periodically organize testing sessions during which ce can test our clients ropes.
Contact us to get the full technical information
1/3
2/3
3/3
Transportation systems
1/2
2/2
Parachute brake – Instantaneous action with damped effect
The clamping unit catches the gripping support (sleeping rope - ANDRA shaft, or track structure - ISOLA 2000 inclined lift), then the damper decelerates the cabin.
EC type examination by a notified body regarding the lift directive 95/16/CE
Contact us to get the full technical information
1/3
2/3
3/3

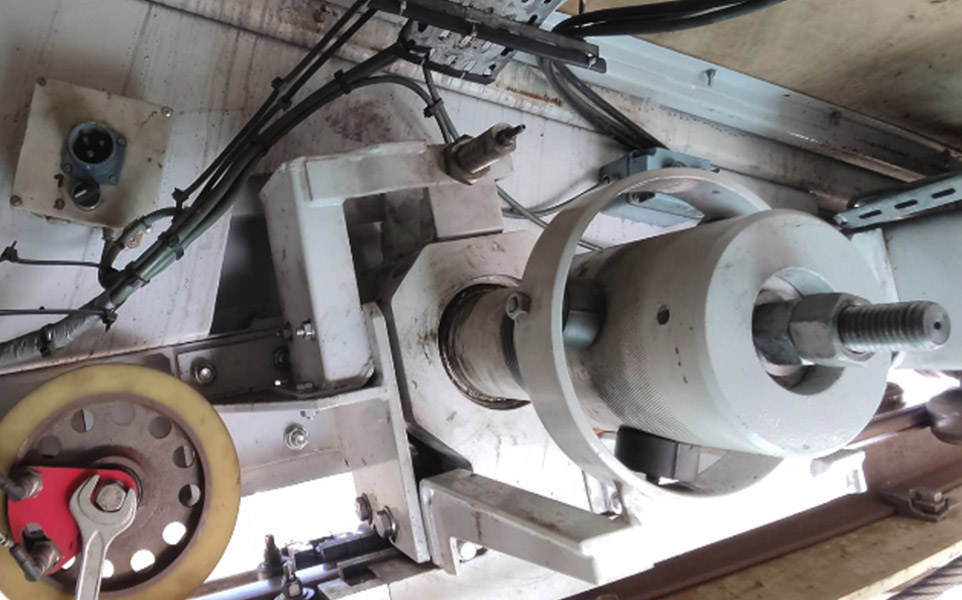

Parachute brake – Progressive action
This parachute brake has been developed jointly with Schindler in the 1990’s, and was installed on an outdoor inclined elevator.
Validated by the French Authorities of the Ministry of Transports.
Contact us to get the full technical information
1/2
2/2

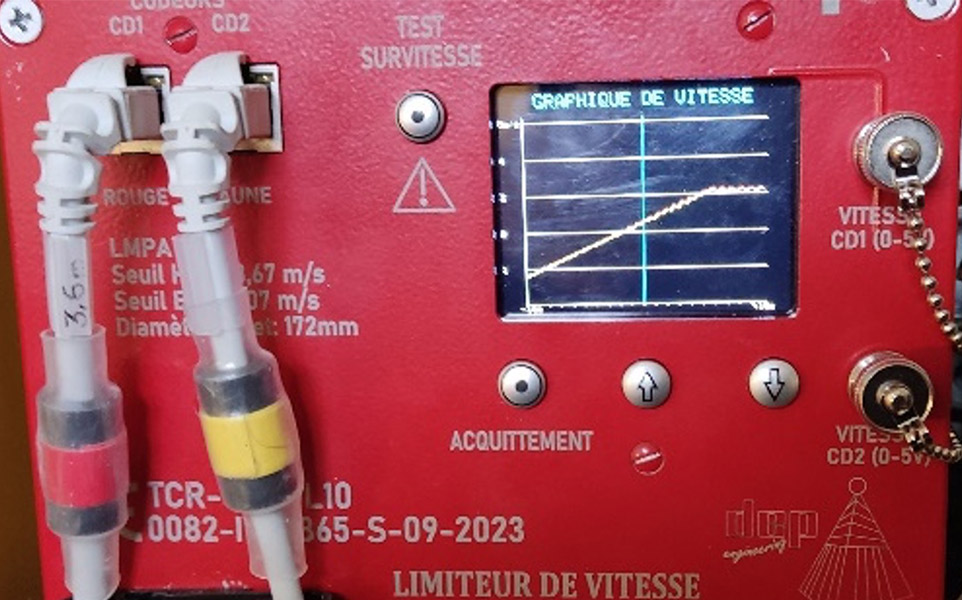

Overspeed governor
Electronic system dedicated to the measurement of cabin's speed and to activate the parachute brake with a reaction time of less than 50 ms.
EC type examination by a notified body regarding the lift directive 95/16/CE
Contact us to get the full technical information

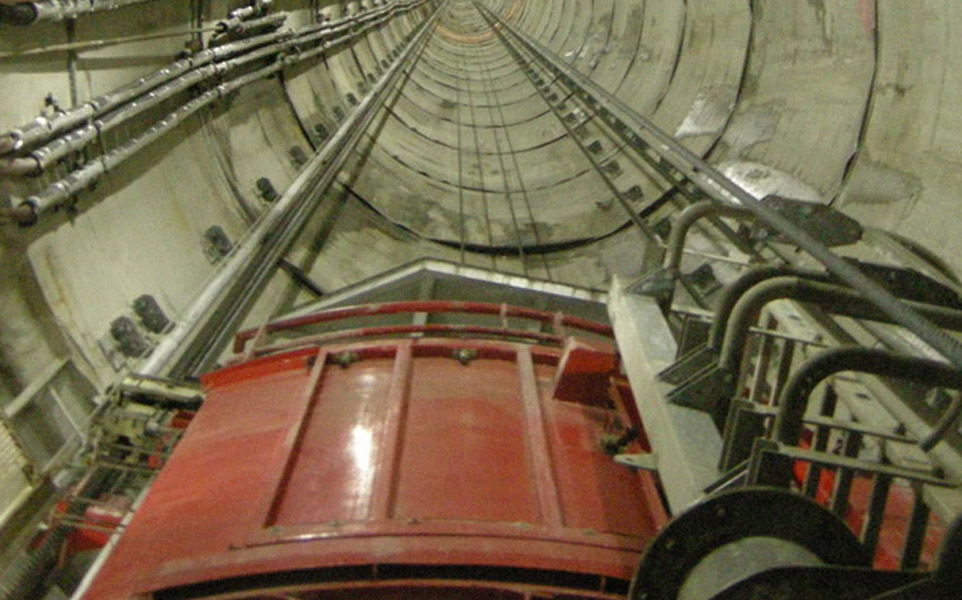

Data transmission system
Wireless electronic system dedicated to the transfer of safety input and output between the cage in the shaft and the main control unit in station within a reaction time of less than 100 ms.
SIL3 evaluation by a notified body regarding Machinery Directive
Contact us to get the full technical information
